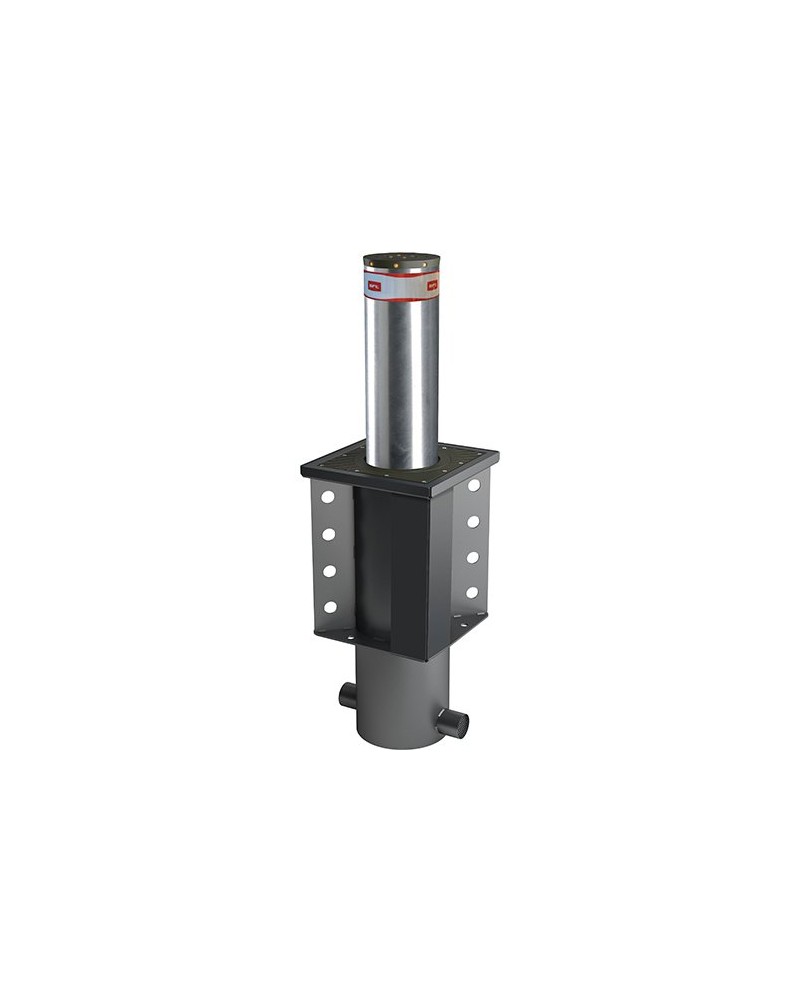

BFT XPASS B 275/800 L Rising Bollard

THE XPASS B 275/800 L STAINLESS STEEL, HYDRAULIC ANTI-TERRORISM BOLLARD WITH LED LIGHT CROWN, 230 V, 800000 J BREAKING RESISTANCE.

Anti-terrorism rising hydraulic bollard for traffic control. An independent body has tested and certified the bollard according to PAS 68 and IWA 14-1 standards. This BFT XPASS B 275/800 L stainless steel hydraulic anti-terrorism bollard for traffic control, is ideal for new traffic control automation, existing traffic control automation, upgrade, or replacement.

Product details

  • Power supply: 230 V
  • Control panel: Perseo CBE
  • Rising time: 7 sec.
  • Frequency of use: 2000 operations per day.

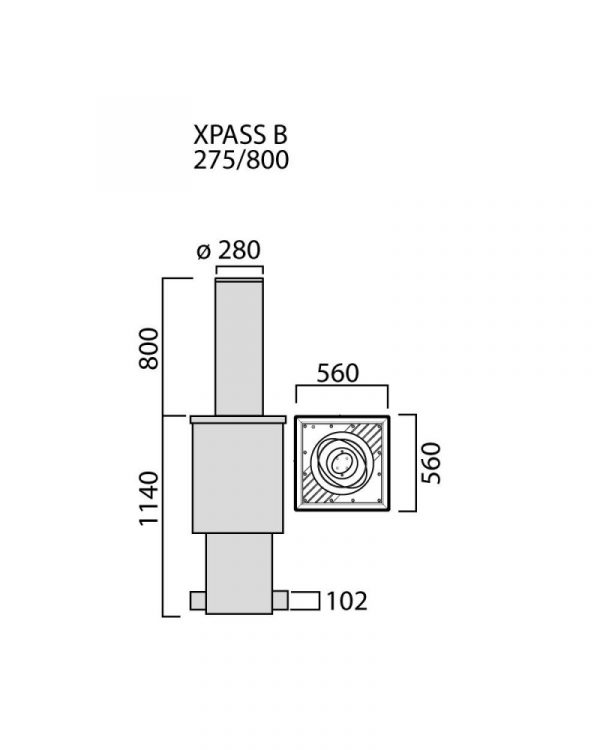

  • Shaft diameter: 275 mm.
  • Shaft height: 800 mm.
  • Shaft thickness: 10 mm.
  • Limit switch: Reed magnetic sensor
  • Breaking resistance: 800000 J
  • Protection rating: IP67

Sold Out

Anti-terrorism rising hydraulic bollard for traffic control. An independent body has tested and certified the bollard according to PAS 68 and IWA 14-1 standard. It is ideal for new traffic control automation, existing traffic control automation, upgrade, or replacement. The Xpass B 275/800 L stainless steel is a hydraulic anti-terrorism bollard with an LED light crown, which can rise in 7 seconds. Its breaking resistance is 800000 J, shaft diameter 275 mm. and height 800 mm. Reed magnetic sensor limit switch will ensure safe and precise installations.

Perseo CBE control panel can manage up to 4 bollards at the same time. It has a programming menu on the display, as well as an incorporated receiver and integrated heating element.

Main features: Anti-terrorism bollard – Reed magnetic sensor limit switch – 800000 J breaking resistance – Configurable command inputs

Weight 260 kg
Power supply

230 V

Control panel

Perseo CBE

Rising time

7 sec.

Frequency of use

2000 operations per day

Shaft diameter

275 mm.

Shaft height

800 mm.

Shaft thickness

10 mm.

Limit switch

Reed magnetic sensor

Breaking resistance

800000 J

Protection rating

IP67

Instruction Manual

Download
